Types and Advantages of Cone Crusher

Cone crusher, usually defined as fine crusher, is widely applied to crushing hard and medium hard ore and rocks in Mining industry, metallurgy industry, construction industry, chemical industry and silicate industry.

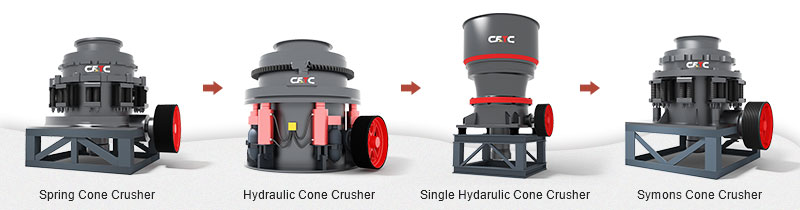

Cone crusher types

Cone crusher contains standard type and short head type and is usually used in medium and fine crushing. Standard type cone crusher is generally used in the second crushing stage. CFTC standard cone crusher is mostly used in open circuit while the short head type is usually used in close circuit. Short head type crusher is always used in fine crushing, namely, the last crushing stage. CFTC cone crusher divides into four crushing cavity, extreme coarse crushing cavity, coarse crushing cavity, medium crushing cavity and fine crushing cavity. And the input size and out put size decides which crushing cavity will be chosen. Specifically, large feeding size and finished particle size uses extreme coarse crushing cavity or coarse crushing cavity, otherwise chooses medium or fine crushing cavity. When selecting the elbow plate, users should take capacity, power consumption, wear resistance of liner into consideration. Generally, the following principles should be followed: maximum feed size; change in particle size, distribution of feed particle size; hardness of the material; wear resistance of the material.

The longer the liner, the higher the power consumption. So the short liner is suitable for hard materials and the long liner for soft materials. In terms of material distribution, selecting short liners for fine materials and long liners for coarse materials. The increasing the moisture content of viscous materials can affect the throughput of the materials. Generally speaking, the moisture content of the materials does not exceed 5%. As the power: standard cone crusher should reach 75% ~ 80%, short head cone crusher should reach 80% ~ 85%.

Performance characteristics of cone crusher: high crushing ratio, uniform product size, simple structure, reliable work, easy maintenance and low operating costs. Working principle of the cone crusher: When the cone crusher works, the rotation of the motor is performed by a pulley or a coupling, the cone crusher drive shaft and the cone crusher under the force of an eccentric sleeve to make a swing motion around a fixed point. As a result, the cone crushing wall is sometimes close to and sometimes away from the surface of the wall of the mortar fixedly mounted on the adjustment sleeve, so that the ore is continuously impacted, crushed and bent in the crushing cavity to achieve ore crushing.

Our company has complete product specifications, complete testing methods, novel design, reliable performance and easy operation. CFTC is dedicated to providing new and old customers with first-class products and perfect after-sales service, and work together for common development in the tide of rapid economic development. The cone crusher produced by our company is mainly used for medium-sized crushing of various ores and large materials. Cone crusher is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industries. So that users can purchase affordable equipment at reasonable domestic equipment prices, and ensure that customers can obtain greater benefits with less investment. Glory belongs to the past, and strives to create the future together. With only a hundred times of effort, better quality and better service to repay the trust and love of new and old users, we will continue to uphold it.
