Model recommendation for small stone crusher equipment with an output of 20-30 cubic meters per hour

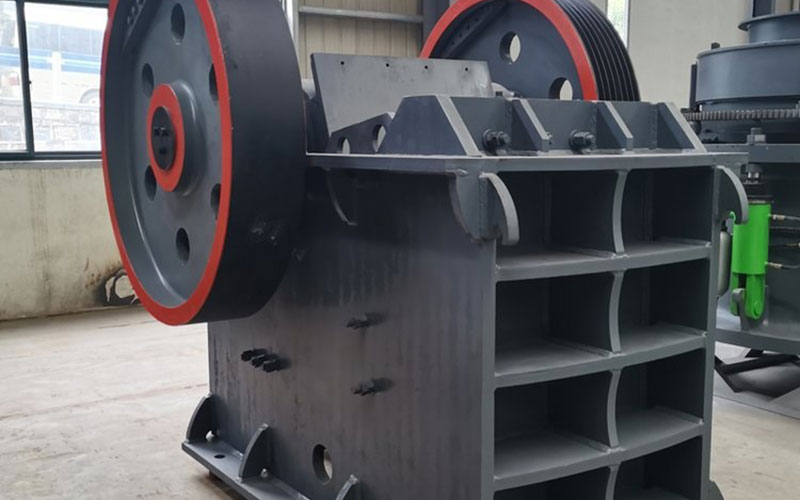

Material coarse crushing equipment - jaw crusher

Jaw crushers are hard and soft, and have a wide range of applications. As long as they cannot directly enter the counterattack, cones, and heavy hammers, it is the preferred equipment for primary crushing of stone materials. It is widely used in mining, smelting, building materials, roads, railways, Many departments such as water conservancy and chemical industry.

Model recommendation for 20-30 square jaw crushers per hour: PE400×600, feed inlet size 400×600mm, maximum feed particle size 340mm, feed inlet adjustment range 40-100mm, processing capacity 16-64t/h, eccentric shaft speed 270r /min, motor power 6P 30kw.

Material secondary crushing equipment - impact crusher, cone crusher

The cone crusher is suitable for crushing materials with high hardness. It adopts the principle of laminated crushing and has a high production capacity. It is suitable for mineral processing and large-scale building materials factories. The impact crusher is suitable for crushing soft materials. The output grain shape is excellent, and it has a certain shaping effect, but the production capacity is lower than that of the cone crusher, and it is suitable for small and medium-sized building materials.cone crusher

Recommended model of cone crusher with an output of 20-30 square meters per hour: PYZ900, the diameter of the big end of the crushing cone is 900mm, the maximum feeding size is 60mm, the width of the discharge opening is 5-20mm, the processing capacity is 20-65t/h, and the total weight of the equipment is 11.2t.

Impact Crusher

The recommended impact crusher model with an output of 20-30 cubic meters per hour: PF-1007, the size of the feed port is 400×730, the maximum feed size is 300mm, the processing capacity is 30-70t/h, and the motor power is 4P 37-45kw.

Material crushing equipment - fine crusher

In addition to the fine crushing function, the fine crusher can also be used to make sand, so it is also called the third generation sand making machine. The structural design of the split hammer head makes it very convenient to replace the hammer head. The bottom sieve plate is made of multi-element alloy casting. For materials with certain humidity and viscosity, the width of the sieve gap can be adjusted and improved by adjusting the sieve plate.

Recommended model of 20-30 cubic meters fine crusher per hour: PXJ0808, rotor diameter×width 800×800mm, production capacity 10-60t per hour, motor power 45kw.

One-time forming equipment for materials——hammer crusher

One piece of hammer crusher is a line, with a grate design, which can control the size of the output, and the output can be more than 2-3mm. Hammer crusher is mainly used for crushing medium hardness and brittle materials, suitable for mining, cement, coal, metallurgy, building materials, highway and other industries.
