The working principle of high pressure pulverizer

1. Applicable materials for high pressure pulverizer

It is suitable for materials with humidity lower than 6% and hardness not exceeding 9.3, such as kaolin, calcite, talc marble, barite, gypsum, red iron oxide, green iron oxide, aluminum hydroxide, pigment, bentonite, clay and other materials.

2. The working principle of high pressure pulverizer

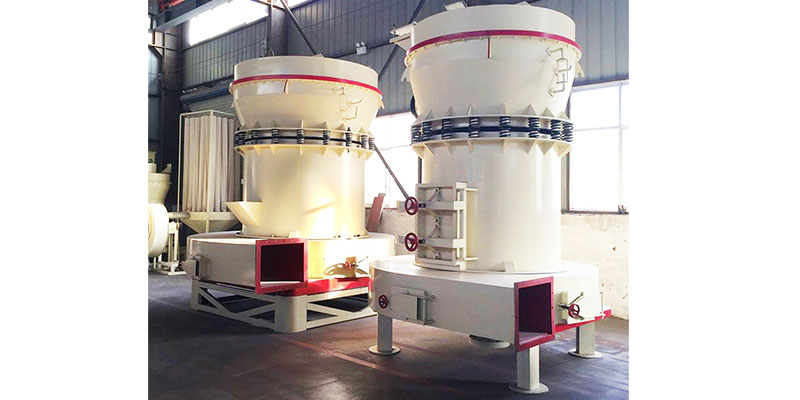

The overall structure of the high pressure pulverizer is composed of the main engine, the analyzer (powder separator), the piping device, the blower, the finished product cyclone, the jaw crusher, the elevator, the electromagnetic vibrating feeder, the electric control motor, etc. Among them, the high-pressure Raymond mill main machine consists of a frame, an air intake volute, a blade, a grinding roller, a grinding ring, a cover plate and a motor.

When the high-pressure Raymond mill is working, under the action of centrifugal force, the grinding roller rolls tightly on the grinding ring, and the material is shoveled into the middle of the grinding roller and the grinding ring. The material is broken into powder under the action of rolling force, and then the powder material is blown out by the analyzer under the action of the fan. The materials that meet the fineness requirements continue to be ground through the analyzer, and the materials passing through the analyzer enter the cyclone for separation and collection. Exhaust adopts industrial filter cloth to isolate exhaust powder.
