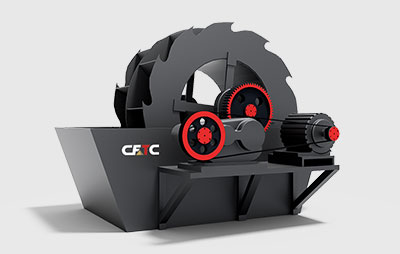

Bucket Wheel Sand Washer


Power:5.5-15kW.
Capacity:20-180tph.
Applicable materials:river pebbles, pebbles, limestone, granite, quartz sand, natural sand, machine sand, river sand, etc..

Get a Quote

Introduction

Bucket wheel sand washer is used in sand making plant for washing the solid and powder out of the sand, in the beneficiation plant for extracting sand, etc. It is widely applied to the expressway, hydropower, construction, etc.

Filter disc
Washing tank
Consignment


1.The loss of medium snad fine sand is much less during operation;
2.Low water consumption,saving water resourcess;
3.Less wearing parts, no other wearing parts except screen;
4.Durable, low energy consumption, low operating costs.


Working Principle

When operating, the motor drives the bucket wheel slowly rotating through the V-belt and reducer. The sand is put into the washing tank through the feeding chute, and rolls over by the bucket wheel driving. During the rolling, the friction between the sand particles strips the impurities, and breaks the vapor coatings around the particles in order to facilitate dehydration. Meanwhile, massive water is put into the washing tank to form a strong water stream to take the impurities and small percentage of foreign matters away immediately and discharge them from the overflow port. The clean sand is taken by the bucket wheel, and rises up slowly. The water contained in the sand leaks out and falls into the washing tank through the filter screen on each bucket. This process not only finishes the dehydration of sand, but also saves the water. Finally, the cleaned sand is put into the output groove from the buckets, finishing the whole washing process.

Parameter

Please strictly refer to the product technical parameters for work. specifications are subject to change without notice. Please refer to the actual data of machine.

Model Diameter of bucket wheel(mm) Capacity(tph) Power(kW) Weight(t)
XS2600I 2600 20-50 5.5 2.4
XS2600II 2600 30-70 5.5 2.9
XS2800 2800 50-100 7.5 4
XS3200 3200 80-120 11 6.6
XS3600 3600 120-180 15 8.8

Note:The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.

CFTC is one of the most reliable Bucket Wheel Sand Washer manufacturers in China with many years of experience in Bucket Wheel Sand Washer production . We can supply a complete set of Bucket Wheel Sand Washer with highest quality. Our Bucket Wheel Sand Washer have been exported to Kenya ,Ethiopia, Zambia, Tanzania, Saudi Arabia,Sri Lanka, Egypt ,Pakistan ,Vietnam ,Indonesia, the Philippines, SouthAfrica and other countries . If you have this need , please contact us or send email to sales@china-cfc.cc
