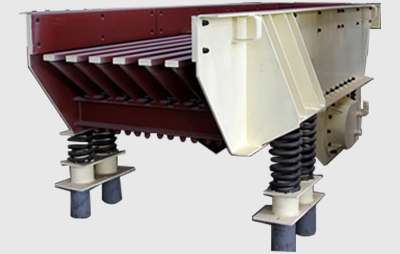

ZSW Vibrating Feeder


Power:1.1*2-11*2(kW).
Capacity:100-1000tph.
Applicable materials:screening plant in the field of mineralprocessing..

Get a Quote

Introduction

The feeder of this series produced by our company is linear grizzly vibrating feeder, which applies a manner ofvibration generator, having the features of stable vibration, reliable operation and long life expectancy. It can continuouslyand uniformly feed for the crusher so as to improve the mechanical performance and continuous working capacity. Theproduct is usually applied to feed jaw crusher. It is widely used in the crushing and screening plant in the field of mineralprocessing, building matenals, water conservancy, and chemical industry.

Spring
 Rod
Consignment


1. Designed with extra-heavy exciter and rack, soundstructure, strong anti-impact capacity;
2. Perfect structure design, high throughout capacity,good material fluidity without blocking ;
3. Adjustable rod structure at the discharge end, withprescreen performance;
4.The self-lubrication omniseal exciter is convenient for maintenance.
5.The optional frequency converting control system can adjust the feeding amount.

Working Principle

ZSW linear vibrting feeder consists of the groove, exciter, spring support base, transmission device and so on. The exciter is the vibration source. The exciter is made up of two eccentric shafts (one is the driving shaft, the other is driven shaft) and a gear pair. The motor drives the driving shaft through the V-belt, and the driving shaft drives the driven shaft. The driving shaft and driven shaft rotate conversely at the same time to vibrate the groove. The materials in the groove move forward to achieve the result of feeding. GZD Series vibrating feeder adopts double vibrating motor to vibrate the groove to feed materials to the crusher.

Parameter

Please strictly refer to the product technical parameters for work. specifications are subject to change without notice. Please refer to the actual data of machine.


Model
Hopper size (mm) Max. feeding size (mm) Capacity (tph) Obiquity of material trough (°) Power (kW) Total weight (t) Overall dimensions(L*W*H) (mm)
ZSW-380X95 3800X960 500 100-160 0 11 4.82 3920X1640X1320
ZSW-490X110 49000X1100 630 150-320 0 15 6.64 4980X1830X1320
ZSW-490X130 4900X1300 750 400-600 0 22 8.76 4980X2580X2083
ZSW-600X130 6000X1300 750 400-600 0 22 9.25 6082X2580X2083
ZSW-600X150 6000X1500 800 500-800 0 30 10.19 6086x2662x1912
ZSW-600X180 6000X1800 800 700-1000 0 37 13.75 6310x3262x2230

Note:The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.
