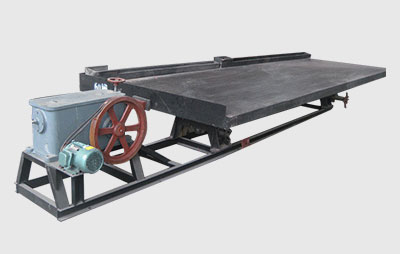

Concentrating Table


Power:0.55-1.5(kW).
Capacity:0.2-1.5 t/h.
Applicable materials:tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanium and coal, etc..

Get a Quote

Introduction

Concentrating Table equipment can be used in roughing, selection, scavenging, and other operations, and different particle-size classifications of coarse sand (2-0.5mm), fine sand (0.5-0.074 mm), slurry (-0.074mm). When processing the minerals such as tungsten and tin, the effective recycling particle size of the table ranges from 2-0.22 mm. Besides, it also can be used in classifications of iron and manganese ores.

Frame
Deck
Consignment


This kind of shaking table has wide adjustable horizontal slope range (0~10°) and is easy to adjust stroke. It has smooth surface, good abrasive resistance, and sturdy and durable performance without deformation, which is convenient for sectional repair. When the horizontal slope and stroke are changed, the shaking bed surface also can run smoothly; the spring is placed in the box with compact structure; the bed head mechanism has reliable operation, less quick-wear parts, no oil leakage, no reagent consumption, and low power consumption.

Working Principle

The ore particles are fed from the feed chute at the upper corner of the 6s shaking table bed surface. Meanwhile, the horizontal flushing water is supplied by the feed water tank for ore particles. Therefore, with the action of gravity, horizontal impulsive force, inertia and friction produced in repeated asymmetric motion of bed surface, the ore particles are layered according to gravity and size, and make vertical movement along the bed surface and horizontal movement along the tilted bed surface.

Parameter

Please strictly refer to the product technical parameters for work. specifications are subject to change without notice. Please refer to the actual data of machine.

Table length*feeding width*Concentrate mouth width Strokemm Jig frequency(c. p. m) Transverse slope adjustment range Particle Water consumption Production capacity Production volume (t/d) weight(kg)
Ore sand Slurry   Ore sand Slurry Model Power(kw)
3000*1320*1100 6/30 210-320 0-10 -2 -0.1 0.3-1.5 0.7-1.5 0.4-1.0 Y100L-6 1.5 650
2100*1050*850 12/28 250-450 0-8 -2 -0.074 0.2-1.0 0.4-0.8 0.3-0.5 Y90L-6 1.1 450
1100*500*4230 9/17 280-460 0-10 -2 -0.074 0.1-0.5 0.1-0.2 0.05-0.1 Y80L-4 0.55 150

Note:The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.

CFTC is one of the most reliable Concentrating Table manufacturers in China with many years of experience in Concentrating Table production . We can supply a complete set of Concentrating Table with highest quality. Our Concentrating Table have been exported to Kenya ,Ethiopia, Zambia, Tanzania, Saudi Arabia,Sri Lanka, Egypt ,Pakistan ,Vietnam ,Indonesia, the Philippines, SouthAfrica and other countries . If you have this need , please contact us or send email to [email protected]
