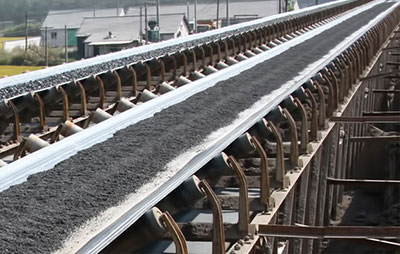

Belt Conveyor


Power:20-75(kW).
Capacity:40-1600tph.
Applicable materials:building materials,water conservancy,and chemical industry..

Get a Quote

Introduction

The belt conveyor is commonly used in transporting the loose materials and packed stuff in the industries as mining, metallurgy, coal, etc. It has advantages of large transport capacity, simple structure, convenient maintenance, standardized components, etc. According to the actual working condition, it can take one set of belt conveyor, a group of belt conveyors, or to build a horizontal or sloping transport system with other transport equipment. The suitable environment temperature is from -20℃ to +40℃. The temperature of materials is below 50℃

Belt for conveyor
Ldler support
Consignment


1.Adopt high-quality rubber belt with strong tensile strength and wear resistance;
2.Reliable structure is more steady;
3.Standardization of parts make the maintenance easily;
4.Accessories are produced under the high quality standard, which makes the service life longer.

Working Principle

The belt conveyor takes the belt as the traction and loading component. The materials are continuously transported under the action of belt moving. The belt moves round the transmission rollers and tensioning rollers to form an infinite endless circular belt. The support rollers support the upper and lower belt to limit the deflection sag of belt, and the tensioning device provides the belt with specific tension strength. When the belt conveyor is operating, the driving device is driving the transmission rollers. The force of friction between the belt and transmission rollers makes the belt and the materials on the belt moving together.

Parameter

Please strictly refer to the product technical parameters for work. specifications are subject to change without notice. Please refer to the actual data of machine.

Belt width(mm)  Belt length (mm) Transport speed(m/s) Capacity(tph)
 Power  (kw)
B400 ≤12     12-20   20-25 1.3-1.6 40-80
1.5  2.2-4    4-7.5
B500 ≤12 2.2-4.0    20-30 1.3-1.6 40-80
3 4-5.5 5.5-7.5
B650 ≤12 12-20.0 20-30 1.6-1.6 130-320
4 5.5 7.5-11
B800 ≤6 43266 15-30 1.3-1.6 280-540
4 5.5 7.5-15
B1000 ≤10 10-20.0 20-40 1.3-2.0 430-850
5.5 7.5-11 11-22.0
B1200 ≤10 10-20.0 20-40 1.3-2.0 655-1280
7.5 11 15-30
B1400 ≤10 10-20.0 20-40 1.3-2.4 1300-1450
11 11-22.0 22-45
B1600 ≤10 10-20.0 20-40 1.3-2.4 1500-1800
15 22-30 30-75

Note:The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.

CFTC is one of the most reliable Belt Conveyor manufacturers in China with many years of experience in Belt Conveyor production . We can supply a complete set of Belt Conveyor with highest quality. Our Belt Conveyor have been exported to Kenya ,Ethiopia, Zambia, Tanzania, Saudi Arabia,Sri Lanka, Egypt ,Pakistan ,Vietnam ,Indonesia, the Philippines, SouthAfrica and other countries . If you have this need , please contact us or send email to [email protected]
